CH Series Full-Range Interlocking LED Panel – Irregular Assembly Ready
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | Charning |
| Certificação: | CE,CCC,CB,ROHS,SASO,BIS |
| Número do modelo: | P3.91 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 2 unidades |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Caixa de papelão, caixa de madeira, caixa de luta |
| Tempo de entrega: | 30 dias úteis após o pagamento |
| Termos de pagamento: | L/C, T/T, dinheiro, Western Union, Paypal |
| Habilidade da fonte: | 900 unidades por semana |
|
Informação detalhada |
|||
| Digite Número: | P3.91 | Dimensão: | 500*500*84MM |
|---|---|---|---|
| Brilho: | ≥3500 CD/㎡ | Modo de digitalização: | Varredura 1/16 |
| Potência máxima: | 200 W | Densidade de pixels: | 65536 DOT/㎡ |
| Destacar: | CH Series LED video wall,interlocking LED panel display,irregular assembly LED display |
||
Descrição de produto
CH Series Full-Range Interlocking LED Panel – Irregular Assembly Ready
Loosen the captive screws – the module automatically pops up via spring force. Using the module handle and the cabinet as a fulcrum, you can easily lever the module off the magnetic attachment for degaussing and removal. Dual-access maintenance significantly reduces repair time, especially for rental and hoisting applications.

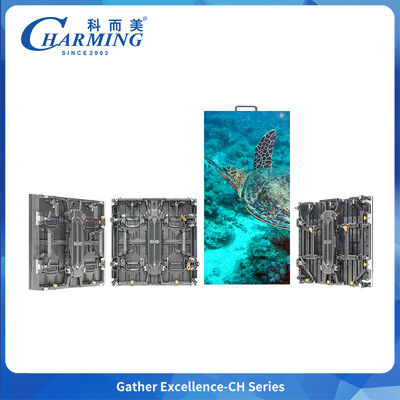

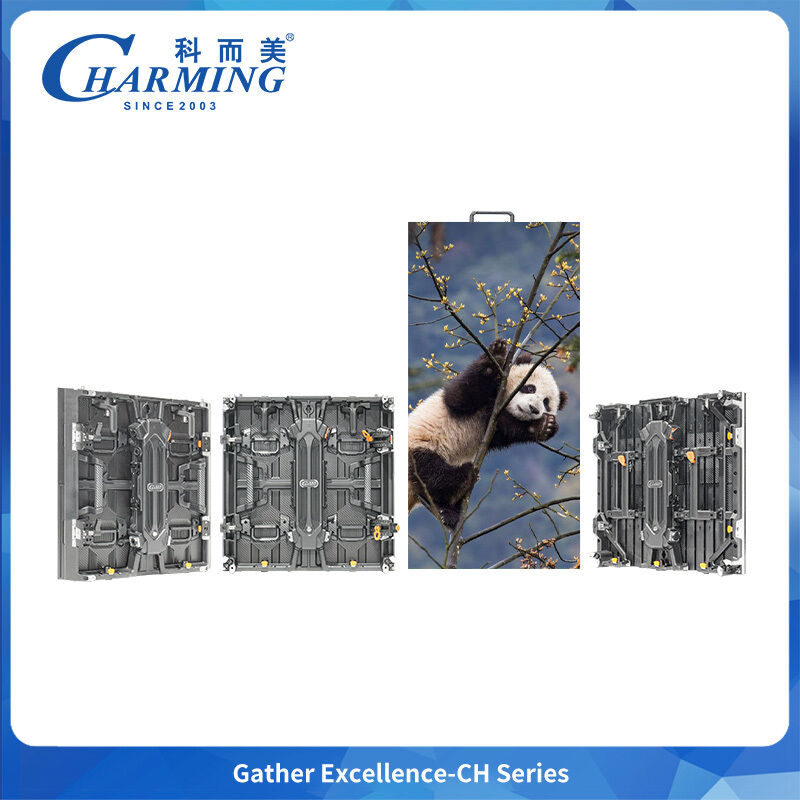

Product Show:
Product Feature:
. One-Click Degaussing & Tool-Free Maintenance
Front and rear maintenance with spring-loaded captive screws and magnetic module attachment allows quick degaussing and removal, reducing downtime and labor costs.
. Full-Range Interlocking & Custom Shapes
Regular, curved, right-angle, and flexible cabinets can interlock seamlessly. Supports U-shape, circular, offset, and 45° beveled assemblies for limitless design possibilities.
. Rugged & Reliable Outdoor Performance
IP65-rated die-cast aluminum cabinets with ribbed heat dissipation, wide working temperature (-20~60℃), and high brightness (≥3500 CD/m²) ensure stable operation in harsh environments.
Company Introduce:
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 23 years.
