Outdoor Die-cast Aluminum Fixed Installation LED Display with IP65 Waterproof, 220W/m² Energy Efficiency, and 6500 CD/m² Brightness
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | Charming |
| Certificação: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Número do modelo: | P6.6 P8 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 2 peças |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Caixa de papelão, caixa de madeira, caixa de voo |
| Tempo de entrega: | 10 dias úteis após o pagamento |
| Termos de pagamento: | L/C, T/T, Western Union, PayPal, Cash |
| Habilidade da fonte: | 500 PCs por semana |
|
Informação detalhada |
|||
| Tamanho do módulo: | 480*320mm | Tamanho do gabinete: | 960*960*77mm |
|---|---|---|---|
| Peso do gabinete: | 25KG | Classificação IP: | IP65 |
| Intensidade de brilho: | >6500CD/m2 | Ângulo de visão (HM): | 140° |
| Escala de cinza: | 14 bits | Temperatura operacional: | -20°C~+50°C |
Descrição de produto

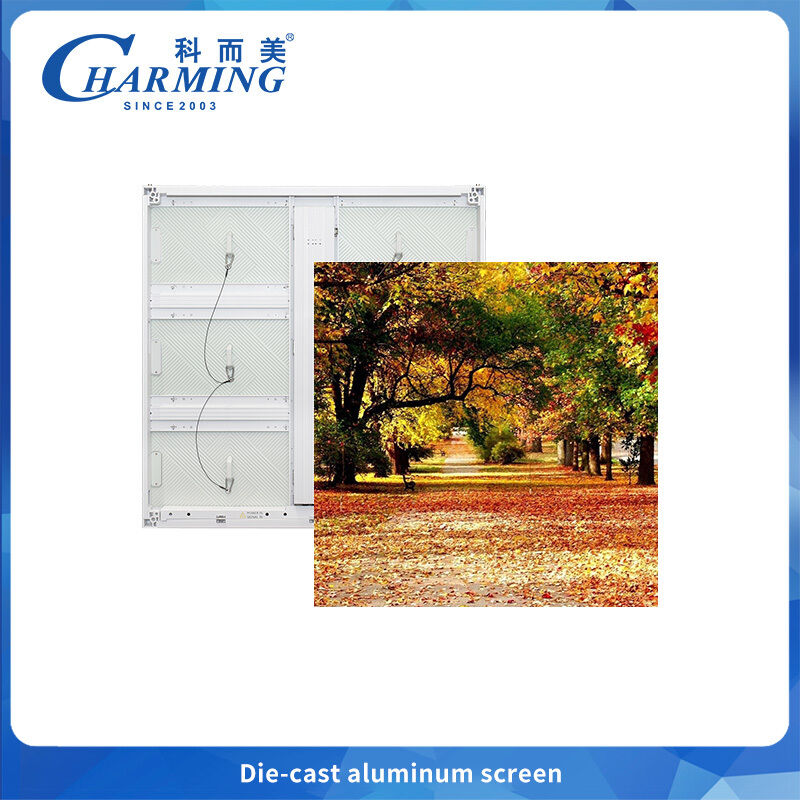

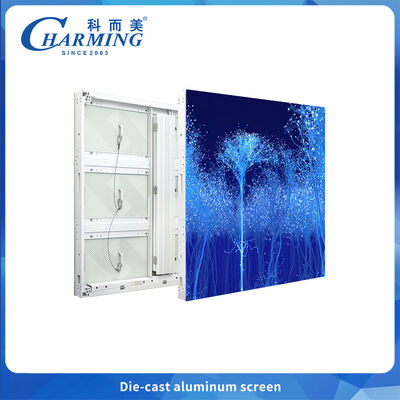

Outdoor Die-cast Aluminum Fixed Installation LED Display Screen
Product Features
High Security
- All-aluminum bottom shell construction
- High ignition point with superior fire resistance
- Passes TUV 5VB fire resistance test
High Stability
- Hard connection design (no internal cables)
- Ultra-stable and extremely safe operation
- Split-voltage power supply: low heat generation, extended lifespan
High Performance
- Brightness up to > 6500 CD/m²
- Capable of 10,000-level brightness display
- Refresh rate ≥3840Hz with 14-bit grayscale
High Waterproof Protection (IP65)
- Original design waterproof rubber ring
- Multi-layer waterproof barrier system
- Suitable for outdoor naked installation - no edging required
High Convenience
- Full front maintenance or full rear maintenance options
- Saves installation space
- Hidden wiring - aesthetically pleasing and durable
Lightweight & Thin Design
- Weight as low as 25 kg per cabinet (~30kg/m²)
- Thickness as thin as 77mm (95mm with power box)
High Contrast
- High mask precision with low tolerance
- No module phenomenon (no visible gaps)
Energy Saving
- Dual voltage power supply driving mode
- Maximum power consumption: only 650W/m²
- Average power: 220W/m²
Product Parameters
| Parameter | P6.6 | P8 |
|---|---|---|
| Pixel Pitch | 6.6mm | 8mm |
| LED Configuration | SMD2727 | SMD2727 |
| Pixel Density | 22500 dot/m² | 15625 dot/m² |
| Module Size | 480×320mm | |
| Module Resolution | 72×48dot | 60×40 dot |
| Cabinet Size | 960×960×77mm | |
| Cabinet Resolution | 144×144 dot | 120×120 dot |
| Cabinet Weight | 25KG | |
| IP Rating (front/back) | IP65 | |
| Brightness Intensity | 140°/140° | |
Installation Details
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the boxes
- Identify power and signal cables, then insert them into the corresponding box connections
- Connect the main signal and power cables to the computer and controller, then debug the screen for successful operation
Package Details
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
